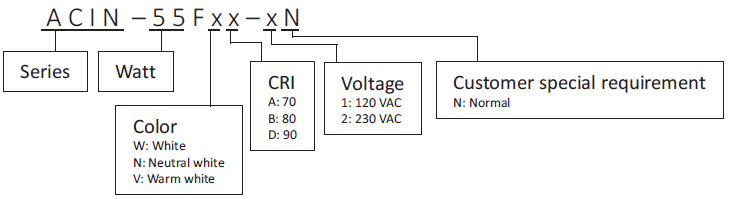

ACIN-55Fxx-xN

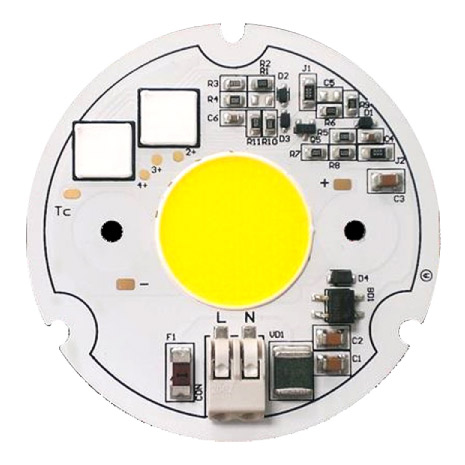

The Sheng Yeong DOB LED COB module delivers safe, reliable, compact size and energy-saving alternatives to traditional Fluorescent Lamp. The innovation design in LED space allocation provides uniform light distribution with high efficiency. The novel AC-LED driver which use no electrolyte capacitors further ensures lifetime of the lamp.


Inquiry
  • Feature

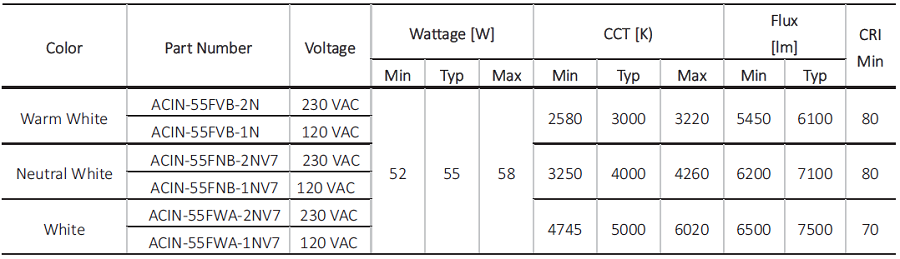

  • Specification
  • Directly AC line input, need no AC-DC power supply
  • High luminous efficiency
  • Zhaga-compatible interface
  • Direct wire-push-in interface
  • Compact size and low profile
  • Less than 5% wattage variance for +/- 5% VAC
  • Long lifetime designed to 50,000 hours
  • High Power Factor > 0.98
  • Low total harmonic distorsion (THD) < 20%
  • RoHS compliant

* The measurements was conducted in 25oC ambient temperature and one pulse input with 2 seconds warm-up time.
