Smart Energy Meter
Single Phase Energy Meter
Digital Single Phase Meter
Single Phase Energy Meter

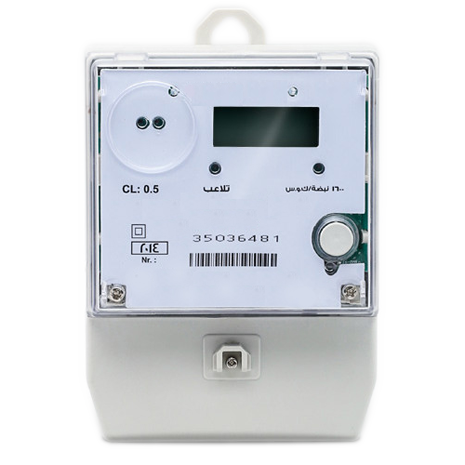

Digital Single Phase Meter
Model
: SY-SAB-0.5
Standards
: EN50470-1, EN50470-3, IEC62052-11, IEC62053-22
Inquiry
NEXT
BACK
Feature
Measurements
Accuracy Class: Active (kWh) Class 0.5 ( Class C )
Energy: Active (kWh), Bidirectional
Maximum Demand: (KW or Ampere) With time stamp, recent and historical values
Instantaneous Parameters: RMS Voltages and Currents
Electrical Parameters
Nominal Voltage: 220/230V ± 20%
Minimum Current: 0.1A
Reference Current: Under to 10A
Maximum Current: Up to80A - Connection: 1phase 2-Wire
Frequency: 50Hz ±2%
Back Up Power Supply: Super Capacitor, 3.6V Battery (Option)
Memory: Non-Volatile with data retention for at least 40 years
Interfaces
Display: LCD, 7 digits with measuring and indication symbols
Optical interface: According to IEC61107
EM Compatibility
Fully compatible with IEC 61000-4-3, EN 50470-1 – IEC 62052-11
Anti-Tampering
Tamper monitoring : Phase reversal, External bypass, Partial or Full Earthing , opening of me-ter cover and terminal block
Tamper Records : Last 3 Events, Last 2 Events + Correction or Number of Attempts + total Time in minutes.
Overload Warning: Programmable over Voltage and over current with indication
Usage Conditions
Class of Protection: (IP 54) for Out Door and (IP 51) for In Door
Operating Temperature: -40 to 70
o
C (3K7)
Storage Temperature: -40 to 85
o
C
Relative Humidity: Up to 95%
Mechanical
Dimensions (L×W×D) (mm3): 286 x 176 x 60
Weight (Kg): 1.013
Material: Polycarbonate sustaining up to 960
o
C
Out of stock.,
contact us
